    Canbus-B01-Thick

    Ask Lasest Price
    Brand Name : BAOBAO&OEM BRAND
    Certification : CE/ROHS /E-MARK/ ISO9001
    Model Number : B01
    Price : $23-$26
    Delivery Time : 3days after payment confirm
    Payment Terms : T/T, Paypal, Western Union, LC
    Supply Ability : 60000Pcs/Per Month
    • Product Details
    • Company Profile

    Canbus-B01-Thick

    High Quality Canbus Digital Ballast B01 B02 B03 B04--35w/55w 9-16V/9-32V

    HID Ballast Parameter:

    model:12v 35w/55w canbus slim ballastB01 B02
    Input voltage range:9v-16v(canbus slim) / 9-32V (canbus slim)
    Output power in stable state:35w+1w/55w+1W(saving 40% power)
    Input Start Current:5A
    Operating input current:3.2A
    Maximum input current:10A
    Instant ignition voltage:23000v~25000v
    Output voltage frequency:250±10 HZ
    Output power:reach 80% in cold starting in 3s,reach rating output power in 8s
    Working Efficiency:≥90%
    Ballast life-span:≥5000hours
    Operating temperature:-40°C -- + 125°C
    Open circuit protection:automatic protection in 1s
    Short circuit protection:automatic protection in 3s
    Other features:waterproof, shockproof
    Ballast Size:80mm*65*14cm80mm*65*14cm
    G.W.:0.45kg/pcs0.5kg/pcs
    Package:50pcs/carton
    Carton size45*36*24

    Features:

    1.It has high conversion efficiency, the efficiency can be 86%.
    2.Wide range input voltage design, from 9 to16V. It is suitable for the different power system of 12V car.
    3.It has a improved electromagnet compatibility EMC circuitry, can resolve most of the failure problems from the installation of the HID on cars.
    4.Brand-new appearance! Improved heat radiation design. Better balance of the easy installation and the lifespan extension.
    5.High efficiency conversion, more power saving. Most of the input current of ballasts are 3.2A or above, that of B01 B02 B03 B04 is just 3.1A ± 0.1A.
    6.The output power is stable in 35W±1W.The power will be stable with different brand bulbs.
    7.Small start current. The start current will not higher than 5.5A when the voltage is 13.5V. And can be drop back to 3.1A quickly and keep stable.
    8.It has a set of strong protection circuitry. Can start protection in 1 second when the Out-put open circuit, short circuit and input polarity reverse.
    9.It has a excellent electromagnet compatibility EMC circuitry, is accord with the S95/54/EC standard.
    10.Water-proof, damp-proof, dust-proof, quake-proof, rot-proof and so on.
    Description:
    1.Intelligently developed with advanced HID technology, our new 35W Super Slim Canbus HID auto ballast kit is the ultimate, slim digital Canbus HID conversion kit to date.
    2.With built-in micro-processesors and high quality internal components, 35W Canbus boasts the most technically advanced digital ballasts that are compatible with 99.5% of cars with canbus systems.
    3.Superior to most other HID kits, the xenon light produced from our new 35W kit is very impressive, assembled with powerful burners, the light output is extremely bright & effective.
    4.Rest assured ALL our kits are supplied with the highest quality HID bulbs, with the H7 Versions having Metal bases for perfect fitment.
    5.Where most others fail, 35W canbus slim kits offer a reliable and smart choice for your xenon lighting needs.

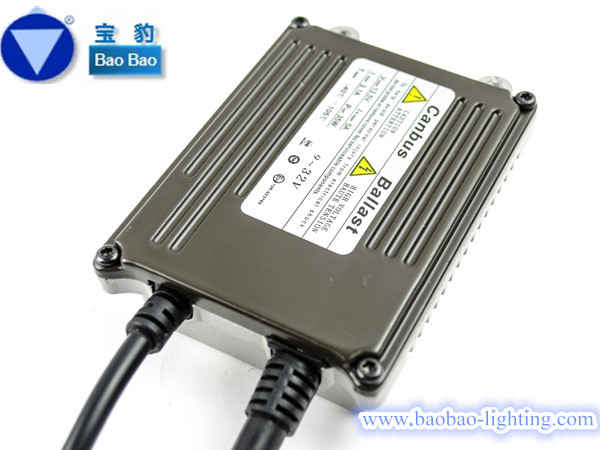

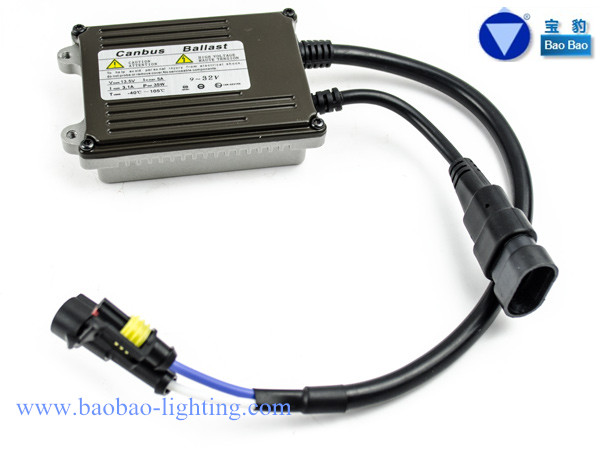

    Photos:


    Quality Canbus-B01-Thick for sale
